Lidar-Lite

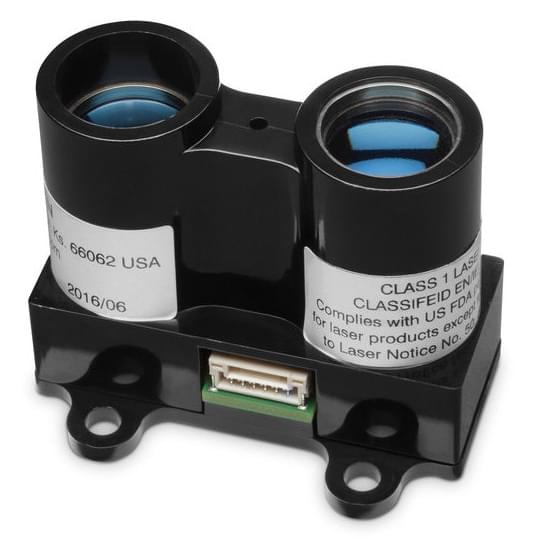

• LIDAR-Lite is a compact, high-performance optical distant measurement sensor solution for drone, robot or unmanned vehicle applications. It can be connected to either I2C or PWM.
•

Wiring

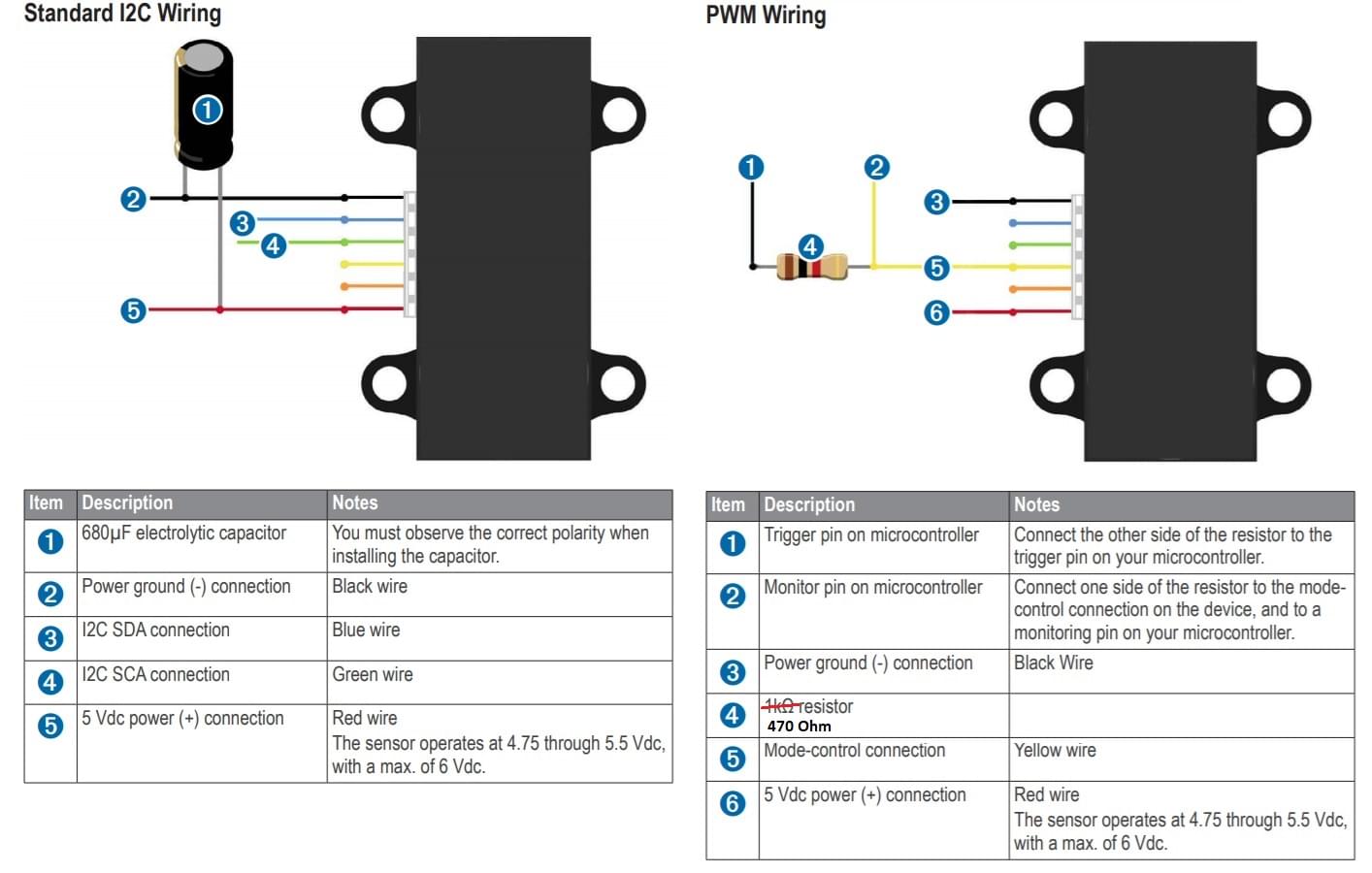

• Standard wiring to connect to Lidar is as follows:
  •
• On the PX4's side, depending on the connection type the arrangement follows:
  • !202510171619-lidar-lite-px4-side-connections.jpg
  • From L -> R: RED - GREEN - BLUE - BLACK
